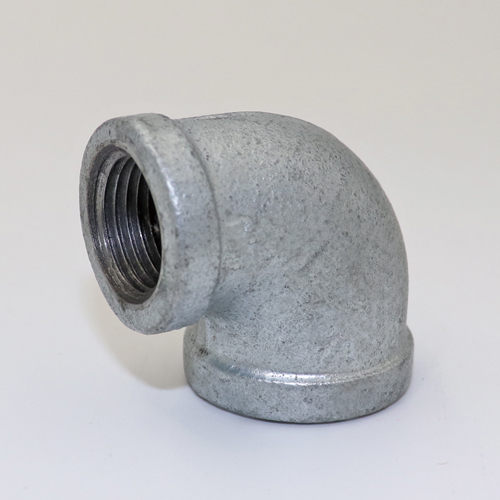

径違いエルボ (白継手)
2024
10/22
メーカー : 海外調達品(ツビオ)
径違いエルボ (白継手)
2024
10/22
メーカー : 海外調達品(ツビオ)
【】
●材料は黒心可鍛鋳鉄で、管用テーパねじ加工しています。
●適用流体は水・油・空気・ガスです。
【仕様】
●流体:300℃以下の油・空気・ガス1.0MPa、120℃以下の清流水2.5MPa
【材質】
●FCMB275-5相当品
商品コード | 型式 | 呼び径(A) | 呼び径(B) | A | B | φD1 | φD2 | φF | φF2 | ℓ1 | ℓ2 | t | 希望販売価格 |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
00922414 | BRL-0201-白 | 8Ax6A | 1/4Bx1/8B | 18 | 18 | 19 | 15.6 | 21.4 | 18 | 9 | 6.5 | 2.3 | ¥730 |
00922415 | BRL-0301-白 | 10Ax6A | 3/8Bx1/8B | 19 | 21 | 22 | 15.6 | 24.4 | 18 | 10 | 6.5 | 2.4 | ¥730 |
00922416 | BRL-0302-白 | 10Ax8A | 3/8Bx1/4B | 20 | 22 | 22 | 19 | 24.4 | 21.4 | 10 | 9 | 2.4 | ¥730 |
00922417 | BRL-0402-白 | 15Ax8A | 1/2Bx1/4B | 24 | 24 | 27.2 | 19 | 30 | 21.4 | 12 | 9 | 2.5 | ¥630 |
00922418 | BRL-0403-白 | 15Ax10A | 1/2Bx3/8B | 25 | 25 | 27.2 | 22 | 30 | 24.4 | 12 | 10 | 2.5 | ¥630 |
00922419 | BRL-0602-白 | 20Ax8A | 3/4Bx1/4B | 25 | 27 | 33 | 19 | 36 | 21.4 | 13.5 | 9 | 2.6 | ¥790 |
00922420 | BRL-0603-白 | 20Ax10A | 3/4Bx3/8B | 28 | 28 | 33 | 22 | 36 | 24.4 | 13.5 | 10 | 2.6 | ¥460 |
00922421 | BRL-0604-白 | 20Ax15A | 3/4Bx1/2B | 29 | 30 | 33 | 27.2 | 36 | 30 | 13.5 | 12 | 2.6 | ¥460 |
00922422 | BRL-0803-白 | 25Ax10A | 1”Bx3/8B | 29 | 31 | 40 | 22 | 43.4 | 24.4 | 15.5 | 10 | 2.8 | ¥910 |
00922423 | BRL-0804-白 | 25Ax15A | 1”Bx1/2B | 31 | 33 | 40 | 27.2 | 43.4 | 30 | 15.5 | 12 | 2.8 | ¥790 |
00922424 | BRL-0806-白 | 25Ax20A | 1”Bx3/4B | 34 | 35 | 40 | 33 | 43.4 | 36 | 15.5 | 13.5 | 2.8 | ¥790 |
00922426 | BRL-1004-白 | 32Ax15A | 1”1/4Bx1/2B | 34 | 37 | 49.6 | 27.2 | 53 | 30 | 17.5 | 12 | 3 | ¥1,750 |
00922427 | BRL-1006-白 | 32Ax20A | 1”1/4Bx3/4B | 36 | 40 | 49.6 | 33 | 53 | 36 | 17.5 | 13.5 | 3 | ¥1,500 |
00922428 | BRL-1008-白 | 32Ax25A | 1”1/4Bx1”B | 40 | 41 | 49.6 | 40 | 53 | 43.4 | 17.5 | 15.5 | 3 | ¥1,500 |
00922430 | BRL-1206-白 | 40Ax20A | 1”1/2Bx3/4B | 37 | 43 | 55.6 | 33 | 59.4 | 36 | 18 | 13.5 | 3 | ¥2,050 |
00922431 | BRL-1208-白 | 40Ax25A | 1”1/2Bx1”B | 41 | 45 | 55.6 | 40 | 59.4 | 43.4 | 18 | 15.5 | 3 | ¥1,800 |
00922432 | BRL-1210-白 | 40Ax32A | 1”1/2Bx1”1/4B | 45 | 47 | 55.6 | 49.6 | 59.4 | 53 | 18 | 17.5 | 3 | ¥1,800 |
00922435 | BRL-1608-白 | 50Ax25A | 2”Bx1”B | 43 | 51 | 68.6 | 40 | 72.6 | 43.4 | 22 | 15.5 | 3.3 | ¥3,330 |
00922436 | BRL-1610-白 | 50Ax32A | 2”Bx1”1/4B | 47 | 53 | 68.6 | 49.6 | 72.6 | 53 | 22 | 17.5 | 3.3 | ¥2,920 |
00922437 | BRL-1612-白 | 50Ax40A | 2”Bx1”1/2B | 51 | 54 | 68.6 | 55.6 | 72.6 | 59.4 | 22 | 18 | 3.3 | ¥2,920 |
00922441 | BRL-2010-白 | 65Ax32A | 2”1/2Bx1”1/4B | 51.5 | 61 | 84.8 | 49.6 | 89.4 | 53 | 23 | 17.5 | 3.7 | ¥8,910 |
00922442 | BRL-2012-白 | 65Ax40A | 2”1/2Bx1”1/2B | 54.5 | 61 | 84.8 | 55.6 | 89.4 | 59.4 | 23 | 18 | 3.7 | ¥7,570 |
00922443 | BRL-2016-白 | 65Ax50A | 2”1/2Bx2”B | 59.5 | 64 | 84.8 | 68.6 | 89.4 | 72.6 | 23 | 22 | 3.7 | ¥7,570 |
00922448 | BRL-2412-白 | 80Ax40A | 3”Bx1”1/2B | 57.5 | 71 | 98 | 55.6 | 102.2 | 59.4 | 25 | 18 | 4 | ¥11,900 |
00922449 | BRL-2416-白 | 80Ax50A | 3”Bx2”B | 61.5 | 71 | 98 | 68.6 | 102.2 | 72.6 | 25 | 22 | 4 | ¥10,250 |
00922450 | BRL-2420-白 | 80Ax65A | 3”Bx2”1/2B | 71.5 | 74 | 98 | 84.8 | 102.2 | 89.4 | 25 | 23 | 4 | ¥10,250 |
00922456 | BRL-3216-白 | 100Ax50A | 4”Bx2”B | 68.5 | 86 | 125 | 68.6 | 129.8 | 72.6 | 28 | 22 | 4.6 | ¥20,560 |
00922457 | BRL-3220-白 | 100Ax65A | 4”Bx2”1/2B | 77.5 | 89 | 125 | 84.8 | 129.8 | 89.4 | 28 | 23 | 4.6 | ¥17,880 |
00922458 | BRL-3224-白 | 100Ax80A | 4”Bx3”B | 82.5 | 90 | 125 | 98 | 129.8 | 102.2 | 28 | 25 | 4.6 | ¥17,880 |
